Dairy Housing - Replacement Parts

Large Sprocket Scraper Driver

45 Teeth 40 Mm Shaft

Part No. CLSPCT

Pulley Wheel And Bearing

$298.00 NZD + GST

Part No. PWAB

Chain And Link For Scraper Driver

The chain requires replacemnt every 5-10 years depending on use, if loose and floppy give us a call for a service check or let us know how many chains you need

Part No. COCHN

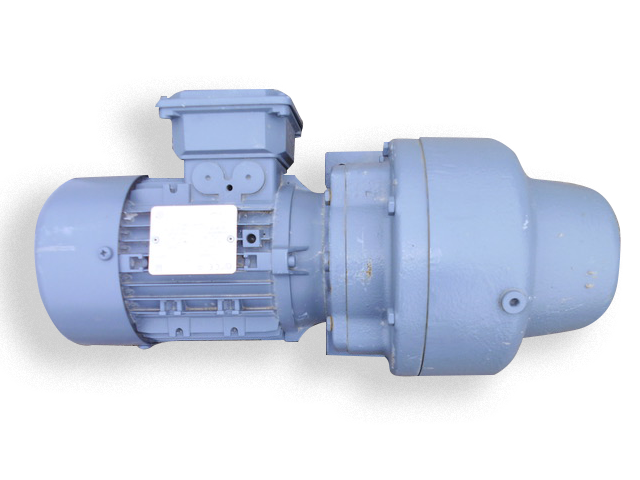

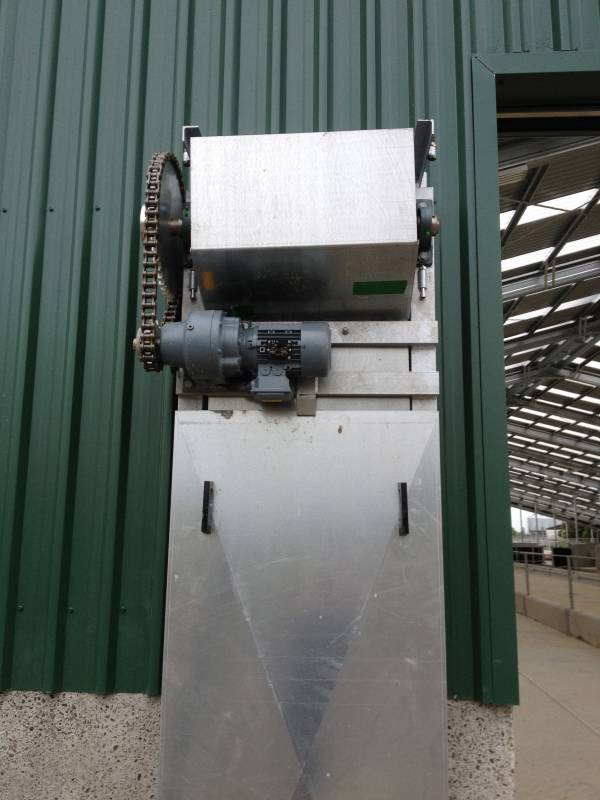

Scraper Driver Motor And Gear Box

This unit is critical for reliable operation of your scrapers, we can also recondition these, pls connect with us to make arrangements

$2895.00 NZD + GST

Part No. COSDM

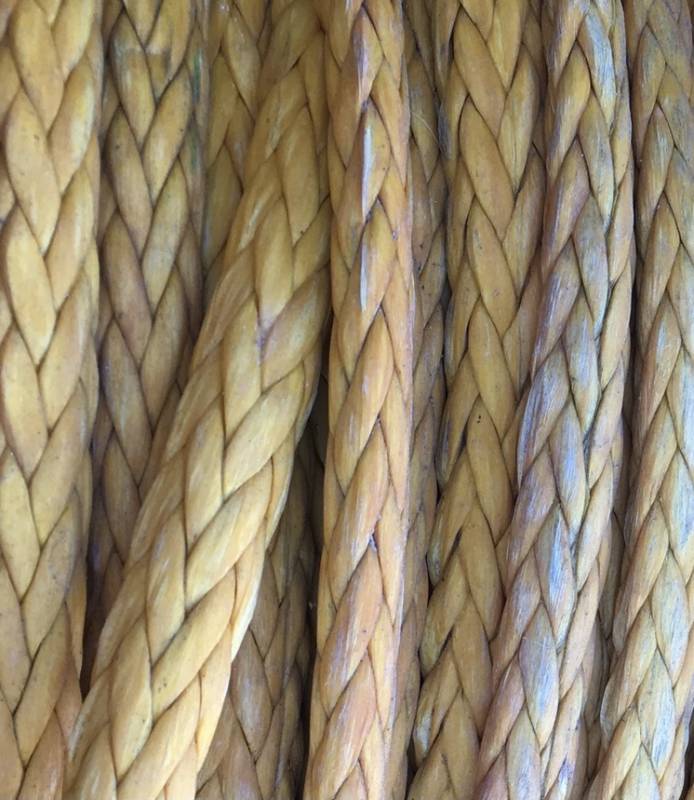

Scraper Lane Rope (ht)

High Tensile Rope

This is for longer lanes (125 -200 m) or if you wish to have longer lasting rope on shorter lanes

$17.98 NZD + GST

Part No. CORHT

Scraper Lane Rope (std)

18-20 Mm Rope For Scraper Lane

Measure lane lenght add 5% lenght ( for drum and tie off)

$8.98 NZD + GST

Part No. COR18STD

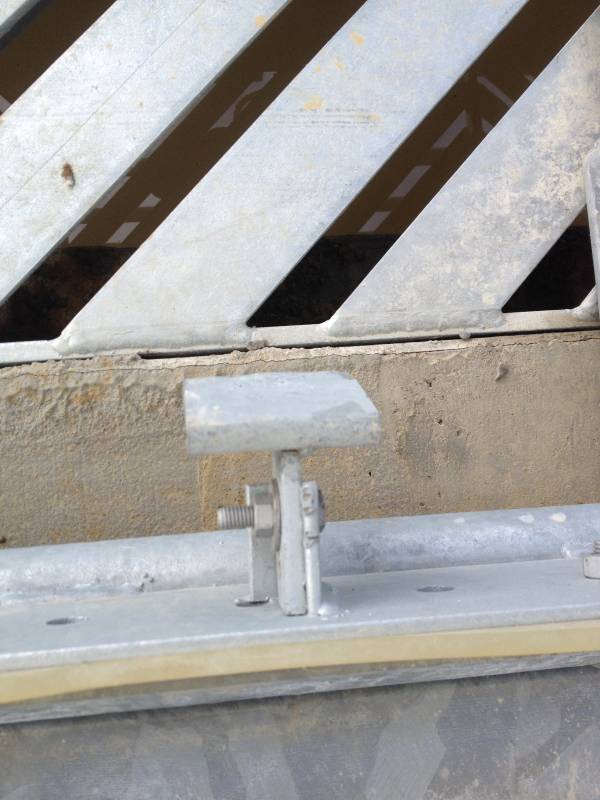

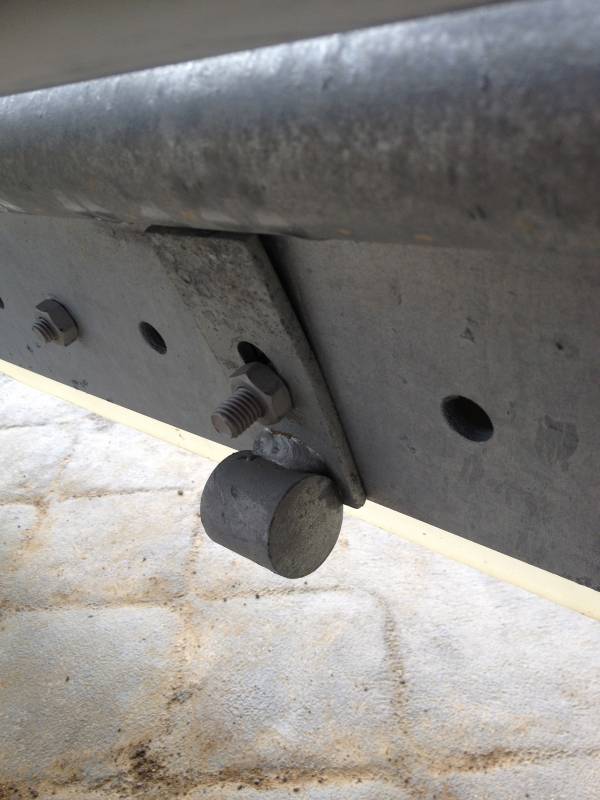

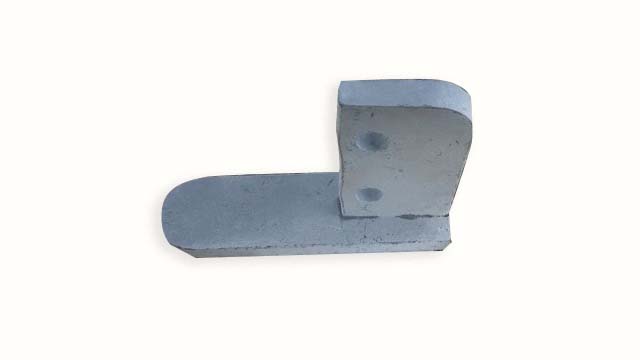

Wear Shoe With Round Rod 40mm

( Not Shown On Drawing)

$67.00 NZD + GST

Part No. CO#WSR40

Wear Shoe Far End Scraper Flat

$60.00 NZD + GST

Part No. CO#10

Wearshoe Angle

With Bolt And Nut

$38.00 NZD + GST

Part No. CO#22

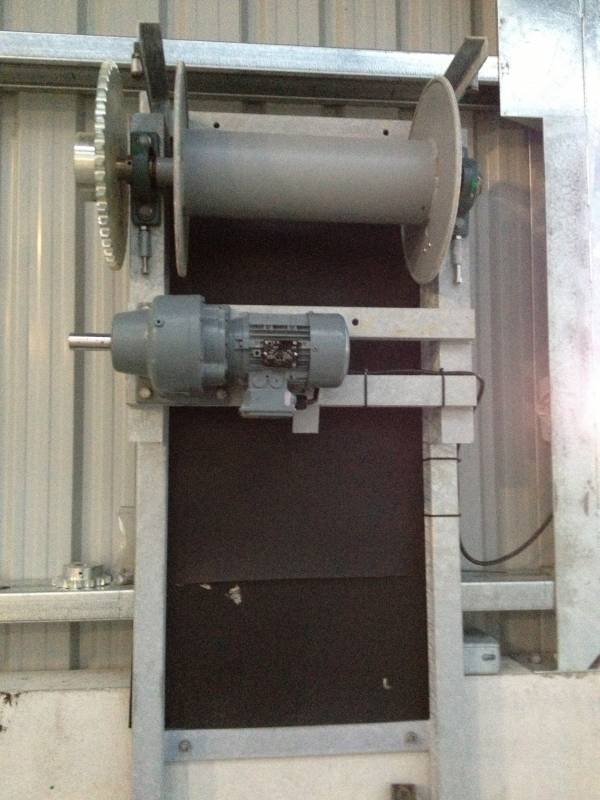

Scraper Drum ( Wind Up)

This Is The Drum Holding The Rope

$1195.00 NZD + GST

Part No. COSCDRM

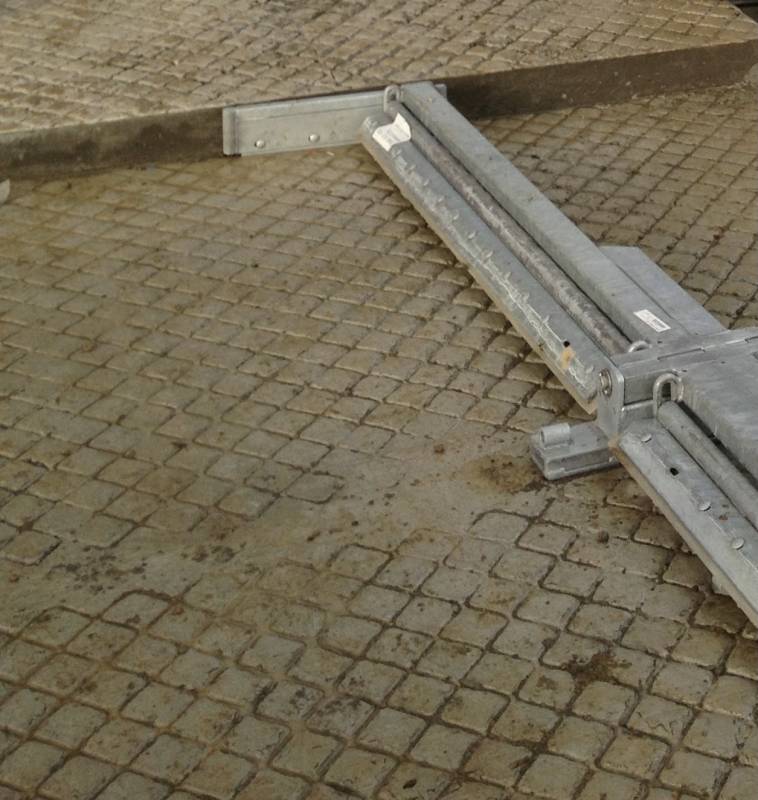

Scraper Blade Complete For 4 Meter Lane

Per Scraper There Are 2 Main Blades

$983.00 NZD + GST

Part No. CO#19

Scraper Blade Complete For 3 Meter Lane

Per Scraper There Are 2 Blades

$899.00 NZD + GST

Part No. CO#19B

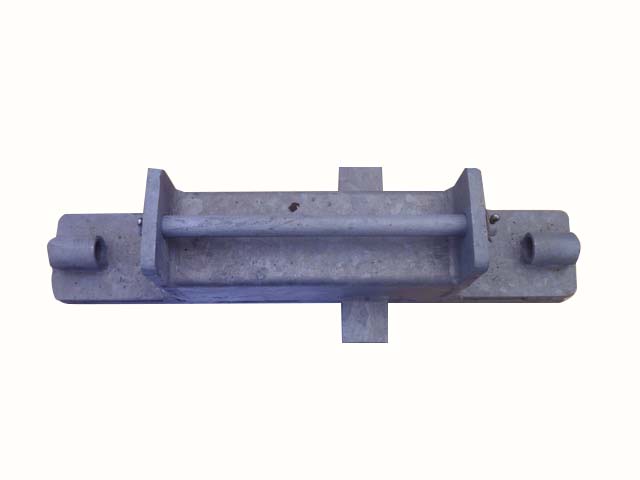

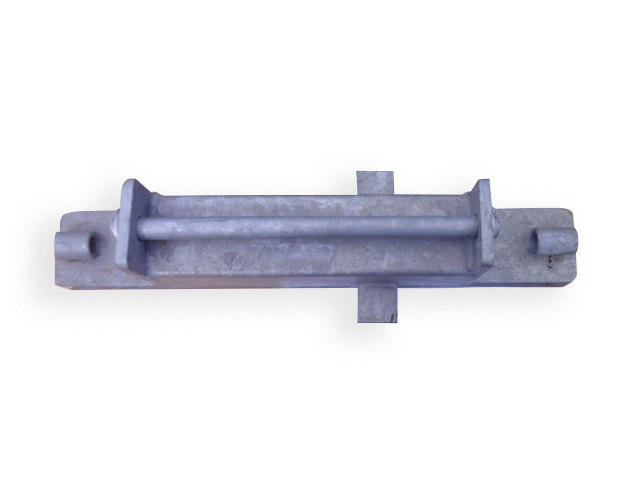

Pullblock Main Frame S

Pullblock For 3 Meter Scraper Lane

$799.00 NZD + GST

Part No. CO#34S

Pull Block Main Frame L

For Main Scraper Lanes 4 Meter

$899.00 NZD + GST

Part No. CO#34

Pin For End Wing Flap

$25.00 NZD + GST

Part No. CO#13

Main Pin For Pull Block Incl Washer And Lock Pin (small)

#31 #32

$59.00 NZD + GST

Part No. CO#31#32SM

Main Pin For Pull Block Incl Washer And Lock Pin

#31 And # 32

$69.00 NZD + GST

Part No. CO#31#32

Coach Nut And Nut Blade Holder

For Clamp Plate Blade Material

$5.99 NZD + GST

Part No. CO#8

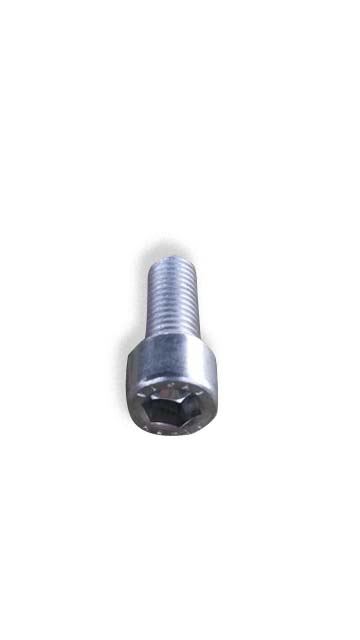

Bolts M12 Allan Key (2) Ss

Stainless Bolts For Draw Bar Plates

$14.00 NZD + GST

Part No. CO#29

Bolts M10 60 Mm R Head

$5.45 NZD + GST

Part No. CO#4

Bolt And Nut 30mm

#1

Bolt and Nut #1

$5.20 NZD + GST

Part No. COS#1

Boltm10 And Nut 75mm

#14 And #15

Bolt for #14 and #15

$5.10 NZD + GST

Part No. CO#14#15

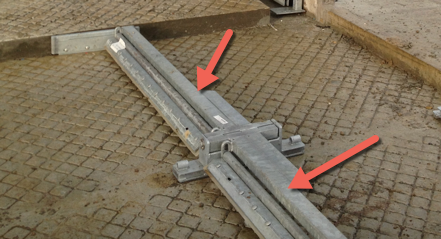

Main Draw Shaft

Without Wear Plates (see #30)

This High Tensile heavy steel shaft is the back bone of the scraper system.
It moves back and forth through the block to guide the scraper when its moving
Keep wear plates up to spec to ensure continued smooth running

$320.00 NZD + GST

Part No. CO#28

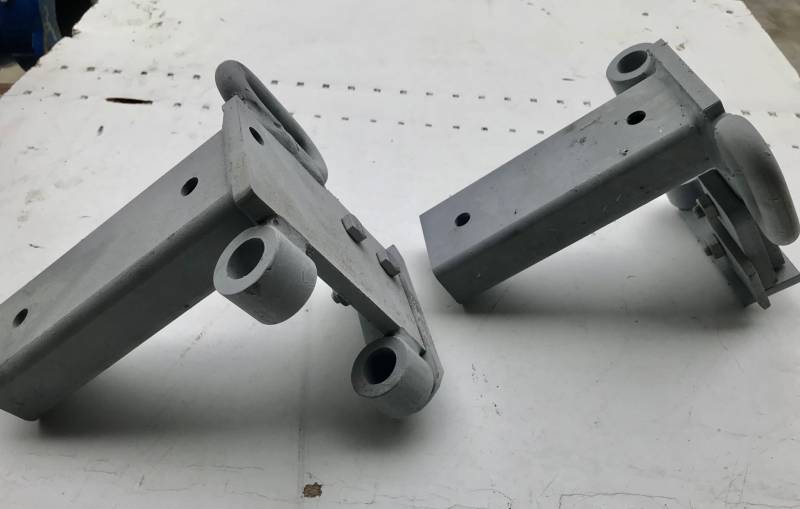

Holder (right)

End Flap ( Wing) R

$225.00 NZD + GST

Part No. CO#11

Holder (left)

End Flap ( Wing) L

This item fits into the arm and holds the wing ( see also #11)

$225.00 NZD + GST

Part No. CO#12

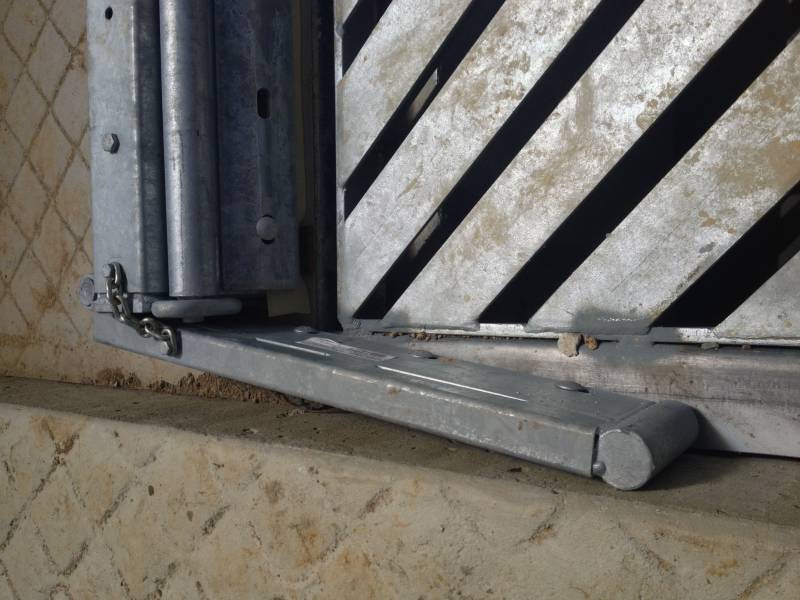

End Wing

Wing Scraper L

$299.00 NZD + GST

Part No. CO#5

Clamp Plate

R Or L Wing

Clamp plate for the scraper wing (#5 and #6)

$289.00 NZD + GST

Part No. CO#20

Clamp Plate

Main Scraper Blade

This plate locks the scraper polyurethane blade in place

$289.00 NZD + GST

Part No. CO#20

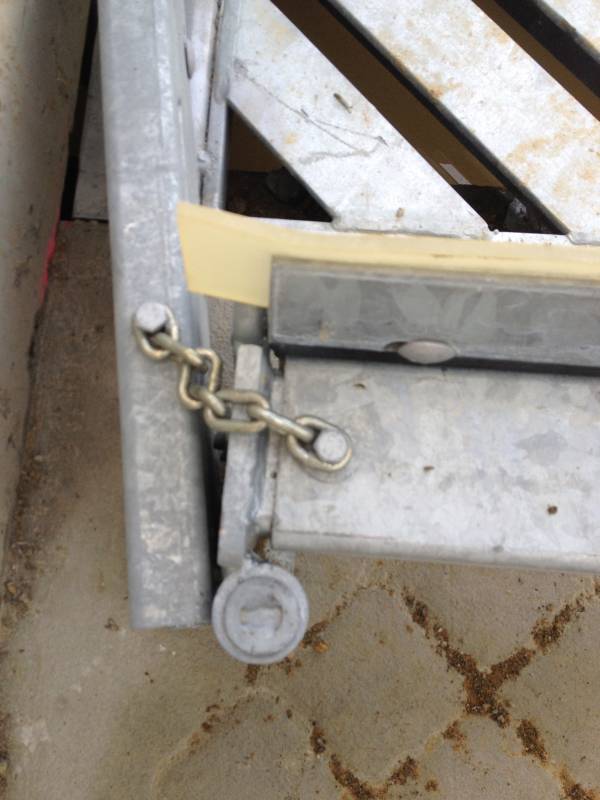

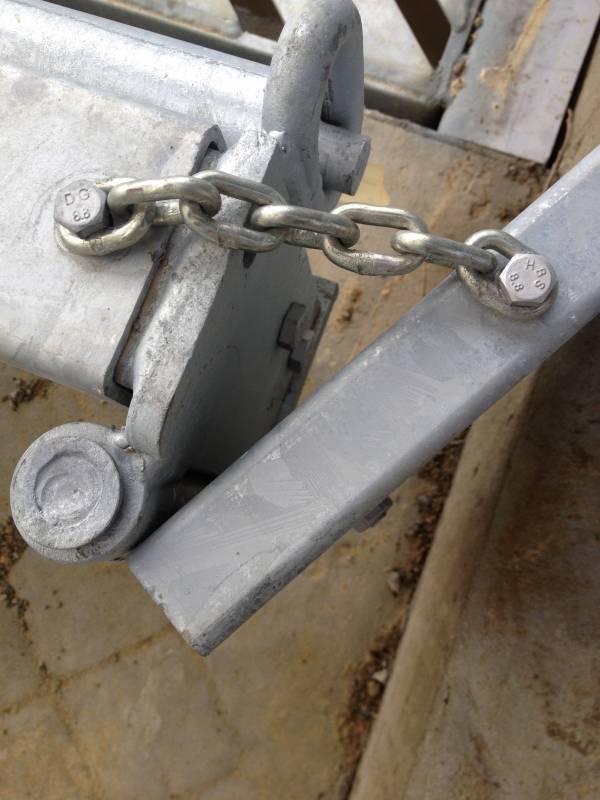

Chain

For Wing Support

The chain is linking the main frame and wing so the wing does not swing the wrong way when the scraper gets lifted due to say a clump of grass/silage.

$30.00 NZD + GST

Part No. CO#16

Short Scraper Arm

3 Meter Lane Right Or Left

These arms fit into the main block and hold the scraper blades

Part No. CO#17

Main Scraper Arm

Right Or Left Main Arm For 4 Meter Lane

These arms fit into the main block and hold the scraper blades

Part No. CO#18

Pulley Complete With Bush And Bearing

Vertical Pulley

This pulley is placed verically at the scraper driver

$788.00 NZD + GST

Part No. COPULLEYVB

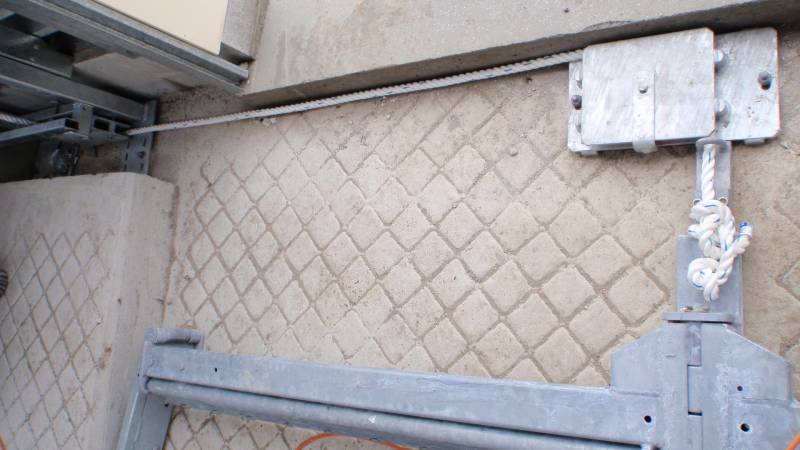

Pulley Complete With Bush And Bearing

Horizontal Concrete Floor Based

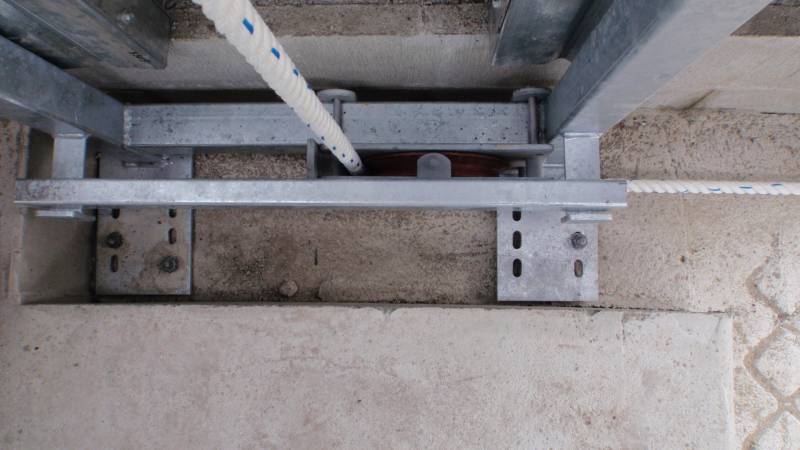

This pulley block is placed either end of the scraper lane mounted on the concrete

$748.00 NZD + GST

Part No. COPULLEYGB

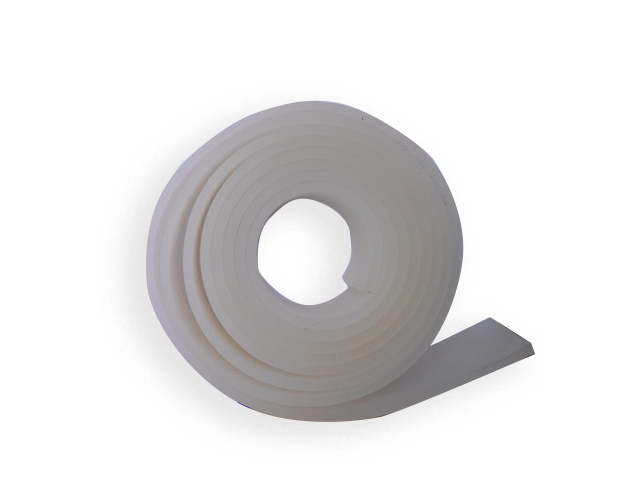

Blade Material For Brouwers Scrapers

Blade Material Scrapers

The Brouwers Rope scraper blades are easily replaced. The polyurethane blade is extendable between the lock plates so before you order check you have used all the blade. Check wear shoes... the blade is to be kept just scraping the surface, not resting on the surface

per 3 meter roll $150.- plus GST and freight Blades can be cut to length and segments can be installed between clamp plates. See also Brouwers scraper install and parts break down drawings

$170.00 NZD + GST

Part No. CO#21
