Direct Line Energisers

Direct line energizers have been sold by TechniPharm in NZ for the past 15 years. The products have a great following of committed clients. Particularly the Solar Energisers are great value for money.

S20b
Previous Next

S20b

Solar Fence Energiser S20b Powers Up To 2km

S20B (2km fence)
BUILT IN RECHARGEABLE BATTERY.
Ideal for small fencing applications.
Fully portable - internal battery included.
Light, easy and fast to set up. Fence leads and a mains recharger are supplied. Coated electronics, resin sealed transformer and SMD technology combine to form a high quality product.
Mains battery charger for internal battery included charges overnight during bad weather





Buy Now

$450.00 NZD plus GST

Add To Cart

S40b
Previous Next

S40b

Solar Fence Energiser S40b Powers Up To 5km

S40B
BUILT IN RECHARGEABLE BATTERY.
Ideal for small fencing applications.
Fully portable - internal battery included.
Light, easy and fast to set up. Fence leads and a mains recharger are supplied. Coated electronics, resin sealed transformer and SMD technology combine to form a high quality product.
Mains battery charger for internal battery included. Charges overnight during bad weather





Buy Now

$550.00 NZD plus GST

Add To Cart

S70  Sold Out As Of 20-07-2016
Previous Next

S70 Sold Out As Of 20-07-2016

Solar Fence Energiser S70 Powers Up To 10km

S70
Designed for medium fence applications.
More power than the self contained models means it can power longer distances.

Designed to slide straight over a steel star post for mounting. A padlock can be fitted to help deter theft. Convenient strong moulded carry handle for easy portability. Super fast to install, large easy to use fence knobs Ideal mould angle to maximise solar collection. Pulse light flashes to indicate operation of system. Low battery warning light - lets you know when to recharge battery. Fence and Earth leads supplied with insulated grips.

Battery not included.

SOLD OUT





Buy Now

$695.00 NZD plus GST

Add To Cart

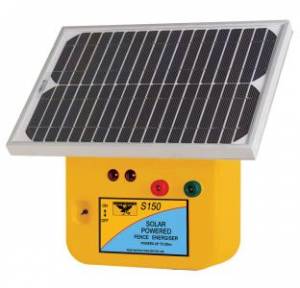

S150
Previous Next

S150

Solar Fence Energiser S150 Powers Up To 20km

S150
Designed for medium fence applications.
More power than the self contained models, can power longer distances.

Designed to slide straight over a steel star post for mounting. A padlock can be fitted to help deter theft. Convenient strong moulded carry handle for easy portability. Super fast to install, large easy to use fence knobs Ideal mould angle to maximise solar collection. Pulse light flashes to indicate operation of system. Low battery warning light - lets you know when to recharge battery. Fence and Earth leads supplied with insulated grips.

Battery not included.





Buy Now

$950.00 NZD plus GST

Add To Cart

Small Mains Systems M25
Previous Next

Small Mains Systems M25

M25

M-25 powers up to 2km 0.26 joules*


* denotes stored joules

Safety certified and approved to Australian and New Zealand Standards
OK operation pulse light flashes with each fence pulse
Quality Australian product with 2 years warranty
Lightning spark gap fitted - 6 months warranty against lightning strikes
Tough weatherproof O-ring sealed enclosure
Surface mount electronics - for ultimate reliability
Large terminal knobs and modular design for fast services
Vacuum sealed transformer





Buy Now

$145.00 NZD plus GST

Add To Cart

Small Mains Systems M60
Previous Next

Small Mains Systems M60

M60

M-60 powers up to 7.5km 0.74 joules*

* denotes stored joules

Safety certified and approved to Australian and New Zealand Standards
OK operation pulse light flashes with each fence pulse
Quality Australian product with 2 years warranty
Lightning spark gap fitted - 6 months warranty against lightning strikes
Tough weatherproof O-ring sealed enclosure
Surface mount electronics - for ultimate reliability
Large terminal knobs and modular design for fast services
Vacuum sealed transformer





Buy Now

$155.00 NZD plus GST

Add To Cart

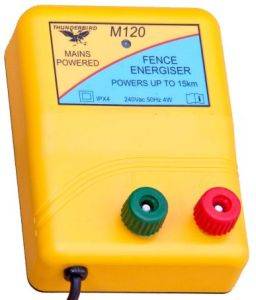

Small Mains Systems M120
Previous Next

Small Mains Systems M120

M120

M120 powers up to 15km 1.40 joules*

* denotes stored joules

Safety certified and approved to Australian and New Zealand Standards
OK operation pulse light flashes with each fence pulse
Quality Australian product with 2 years warranty
Lightning spark gap fitted - 6 months warranty against lightning strikes
Tough weatherproof O-ring sealed enclosure
Surface mount electronics - for ultimate reliability
Large terminal knobs and modular design for fast services
Vacuum sealed transformer





Buy Now

$205.00 NZD plus GST

Add To Cart

Small Mains Battery Energisers Mb130
Previous Next

Small Mains Battery Energisers Mb130

Small Is Great Mb130

Imagine the flexibility of using the same energiser out the back paddock or around the house yards.

Thunderbird's new range of mains / battery fence energisers, deliver flexibility to cover all your fencing needs.

Powers up to 7.5 km & 15km, with 8,000 volts output - .7 & 1.5 stored joules
Digital LCD display ( 3 functions displayed )
Mains or Battery powered, ( A.C. Adaptor and D.C lead supplied )
Optional solar kits are available
Vacuum Sealed transformer, for better reliability and longer life
Quality Australian made product, with 2 years warranty
Lightning spark gap fitted - 6 months warranty against lightning strikes
Tough, weatherproof O-ring sealed enclosure.





Buy Now

$335.00 NZD plus GST

Add To Cart

Remote Controlled Energizer Mb550rRemote Controlled Energizer Mb550r
Previous Next

Remote Controlled Energizer Mb550r

Mb550r

This energiser is supplied with both a 13V plug pack ac adaptor for connection to the mains, as well as a battery lead for connection to a 12V battery. Always operate the energiser under cover.
This energiser is packed with numerous features to enable you to tailor the unit to suit your needs.

The features are explained as follows:
16 Character x 2 Line Display
A backlight aids viewing the information, but turns off after a few seconds to conserve the battery.
Intelligent Adaptive Control - This feature allows the energiser to be more efficient in its use of energy from the power source, and yet deliver maximum voltage when the fence becomes heavily loaded.
Remote Ready - This energiser can be turned from standby to on or vice versa from any point along the fence by means of an optional remote control.
Alarm and Siren Outputs - Early warning of a problem with the fence can be achieved by plugging in an optional strobe or siren/strobe.
Adjustable Output Voltage
Adjustable Pulse Period
Adjustable Alarm Level
Earth Sensing
Strobe and Siren Connection
Power Supply - A socket is provided on the bottom of the energiser for connecting the provided mains power supply or a 12V battery.
Operation - There are 3 operating modes that the energiser can be in. They are off; standby, where there are no pulses but it listens for any remote command; and on.
Monitoring Fence Condition - The energiser display can indicate the condition of the fence.
Battery Monitoring - The battery voltage is monitored while in operation.

MB550R Specifications:
Battery Voltage ...11.8 - 16Vdc
Supply Current*..Standby - 13mA
MB550R- 210 - 400mA (1.4sec pulses, high power)
MB1050R- 350 - 780mA (1.4sec pulses, high power)
MB1750R- 550mA - 1.2A (1.4sec pulses, high power)
Output Voltage....MB550R 7.5kV no load
MB1050R 7.9kV no load
MB1750R 8.3kV no load
Stored Energy.....MB550R - 5.1 joules maximum
MB1050R - 10.2 joules maximum
MB1750R - 17.6 joules maximum
Max Output .........MB550R - 3.46J at 250 ohms resistive load
MB1050R - 8.02J at 200 ohms resistive load
MB1750R - 11.86J at 200 ohms resistive load
Temperature .......-10 - 50 degrees Celsius
Humidity .............0 - 90% non condensing
*Supply current varies with fence load





Buy Now

$840.00 NZD plus GST

Add To Cart

Remote Controlled Energizer Mb1050rRemote Controlled Energizer Mb1050r
Previous Next

Remote Controlled Energizer Mb1050r

Mb1050r

This energiser is supplied with both a 13V plug pack ac adaptor for connection to the mains, as well as a battery lead for connection to a 12V battery. Always operate the energiser under cover.
This energiser is packed with numerous features to enable you to tailor the unit to suit your needs.

The features are explained as follows:
16 Character x 2 Line Display
A backlight aids viewing the information, but turns off after a few seconds to conserve the battery.
Intelligent Adaptive Control - This feature allows the energiser to be more efficient in its use of energy from the power source, and yet deliver maximum voltage when the fence becomes heavily loaded.
Remote Ready - This energiser can be turned from standby to on or vice versa from any point along the fence by means of an optional remote control.
Alarm and Siren Outputs - Early warning of a problem with the fence can be achieved by plugging in an optional strobe or siren/strobe.
Adjustable Output Voltage
Adjustable Pulse Period
Adjustable Alarm Level
Earth Sensing
Strobe and Siren Connection
Power Supply - A socket is provided on the bottom of the energiser for connecting the provided mains power supply or a 12V battery.
Operation - There are 3 operating modes that the energiser can be in. They are off; standby, where there are no pulses but it listens for any remote command; and on.
Monitoring Fence Condition - The energiser display can indicate the condition of the fence.
Battery Monitoring - The battery voltage is monitored while in operation.

MB550R Specifications:
Battery Voltage ...11.8 - 16Vdc
Supply Current*..Standby - 13mA
MB550R- 210 - 400mA (1.4sec pulses, high power)
MB1050R- 350 - 780mA (1.4sec pulses, high power)
MB1750R- 550mA - 1.2A (1.4sec pulses, high power)
Output Voltage....MB550R 7.5kV no load
MB1050R 7.9kV no load
MB1750R 8.3kV no load
Stored Energy.....MB550R - 5.1 joules maximum
MB1050R - 10.2 joules maximum
MB1750R - 17.6 joules maximum
Max Output .........MB550R - 3.46J at 250 ohms resistive load
MB1050R - 8.02J at 200 ohms resistive load
MB1750R - 11.86J at 200 ohms resistive load
Temperature .......-10 - 50 degrees Celsius
Humidity .............0 - 90% non condensing
*Supply current varies with fence load





Buy Now

$932.00 NZD plus GST

Add To Cart

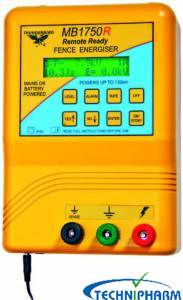

Remote Controlled Energizer Mb1750rRemote Controlled Energizer Mb1750r
Previous Next

Remote Controlled Energizer Mb1750r

Mb1750r

This energiser is supplied with both a 13V plug pack ac adaptor for connection to the mains, as well as a battery lead for connection to a 12V battery. Always operate the energiser under cover.
This energiser is packed with numerous features to enable you to tailor the unit to suit your needs.

The features are explained as follows:
16 Character x 2 Line Display
A backlight aids viewing the information, but turns off after a few seconds to conserve the battery.
Intelligent Adaptive Control - This feature allows the energiser to be more efficient in its use of energy from the power source, and yet deliver maximum voltage when the fence becomes heavily loaded.
Remote Ready - This energiser can be turned from standby to on or vice versa from any point along the fence by means of an optional remote control.
Alarm and Siren Outputs - Early warning of a problem with the fence can be achieved by plugging in an optional strobe or siren/strobe.
Adjustable Output Voltage
Adjustable Pulse Period
Adjustable Alarm Level
Earth Sensing
Strobe and Siren Connection
Power Supply - A socket is provided on the bottom of the energiser for connecting the provided mains power supply or a 12V battery.
Operation - There are 3 operating modes that the energiser can be in. They are off; standby, where there are no pulses but it listens for any remote command; and on.
Monitoring Fence Condition - The energiser display can indicate the condition of the fence.
Battery Monitoring - The battery voltage is monitored while in operation.

MB550R Specifications:
Battery Voltage ...11.8 - 16Vdc
Supply Current*..Standby - 13mA
MB550R- 210 - 400mA (1.4sec pulses, high power)
MB1050R- 350 - 780mA (1.4sec pulses, high power)
MB1750R- 550mA - 1.2A (1.4sec pulses, high power)
Output Voltage....MB550R 7.5kV no load
MB1050R 7.9kV no load
MB1750R 8.3kV no load
Stored Energy.....MB550R - 5.1 joules maximum
MB1050R - 10.2 joules maximum
MB1750R - 17.6 joules maximum
Max Output .........MB550R - 3.46J at 250 ohms resistive load
MB1050R - 8.02J at 200 ohms resistive load
MB1750R - 11.86J at 200 ohms resistive load
Temperature .......-10 - 50 degrees Celsius
Humidity .............0 - 90% non condensing
*Supply current varies with fence load





Buy Now

$1040.00 NZD plus GST

Add To Cart

B1000 Energiser - Self Contained Solar System
Previous Next

B1000 Energiser - Self Contained Solar System

Large Solar Energisers

Powers up to 100km
Battery not included.

Rec Retail $899.-



B40 Energiser - Self Contained Solar System
Previous Next

B40 Energiser - Self Contained Solar System

Medium Solar Energiser

Powers up to 5 km
Battery not included.

Rec Retail $238.-



M800 Energiser
Previous Next

M800 Energiser

M800 powers up to 70 km

Rec Retail $520

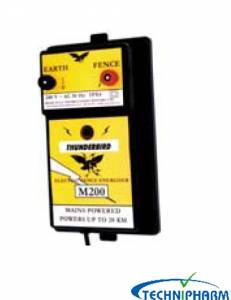

M200 Energiser
Previous Next

M200 Energiser

Powers up to 20km unit

Rec Retail $245



M100 Energiser
Previous Next

M100 Energiser

Powers up to 10 km

Rec retail $220
